Behind the scenes in the enormous universe of packaging, corrugated boxes are the unglamorous heroes that protect products from complicated supply chains. How do companies render these boxes stack-, ship-, and handle-proof? It's all in expert testing: the BCT Test and the FCT Test. Though they're both critical to testing corrugated cardboard, they test different properties of a box's strength. It is imperative that anyone who works in packaging design, manufacturing, or shipping understands the differences between BCT Test and FCT Test.
The Stacking Champion: Mastering the BCT Test
The BCT Test, or the BCT Full Form of Box Compression Test, determines the compressive strength at which a corrugated box will collapse or deform. The test is highly important in that it precisely simulates forces a box can experience stacked in a warehouse or while in transit. A high BCT value signifies a sturdy box that can support heavy loads placed above it, preventing it from getting crushed and ruining the product.
How the Material's Backbone: FCT Test Reveals Secrets
Unlike the BCT Test, FCT Test, or FCT Full Form of Flat Crush Test, includes measurement of the resistance of a corrugated board itself against flat compressive loads occurring in a perpendicular direction to the board's surface. It is testing the stiffness and capacity to withstand flat pressure of the board itself. It is of great significance when testing the corrugated medium (fluted layer) quality and the linerboards.

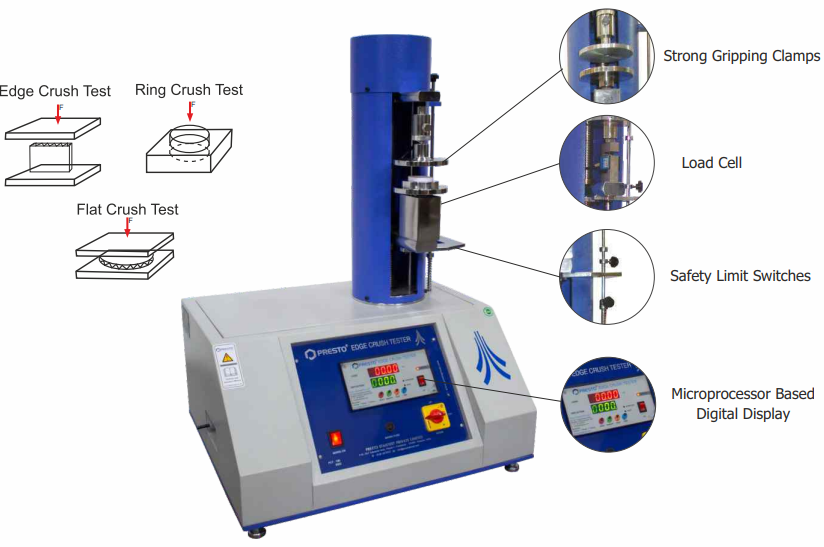

This is achieved by a Flat Crush Strength tester. The corrugated board is placed between two parallel platens shaped like a circular specimen. The machine presses with force until the flutes of the board collapse. The FCT value is the highest force endured before collapsing, normally stated in pounds per square inch (psi) or kilopascals (kPa).
The FCT Test gives a measure of the structural strength of the corrugated board elements. A low FCT value means a weak board, easily crushed when pressed, even before being processed into box shape. This has direct effects on the total stack strength of the box because a weak board would not be capable of imparting strength to the box structure.
BCT Test vs FCT Test: Major Differences and Uses
The fundamental difference between the BCT Test vs FCT Test is what each tests:

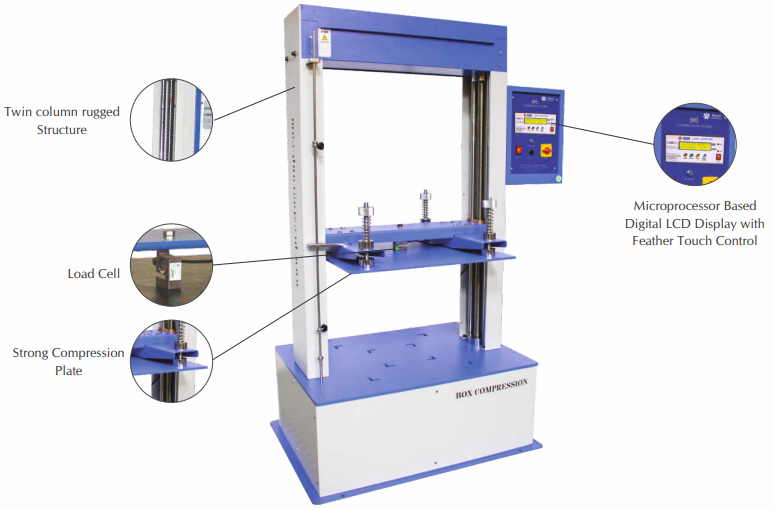

The BCT Test (by a box compression tester) tests the finished box's resistance to top-to-bottom compression, that is, its stacking strength.
The FCT Test (by a Flat Crush Strength tester) tests the corrugated board's resistance to flat crushing, that is, the quality and stiffness of the raw material.
Consider this: the FCT Test informs us about how hard the bricks are, and the BCT Test informs us about how hard the wall constructed using those bricks is. Both are necessary in order to have a full understanding of box performance.
The Cost Factor: BCT Test and FCT Test for Corrugated Boxes Cost
The cost of the BCT Test and FCT Test for Corrugated Boxes depends on whether it is conducted in-house or not.
In-house testing: Comprises frequent setup of a box compression tester and frequent setup of a Flat Crush Strength tester. Equipment needed to conduct the BCT test and FCT test for corrugated boxes can cost anywhere from a few thousand dollars to tens of thousands of dollars. High-volume producers value this cost savings in the long term with virtually instantaneous feedback. frequent setup.
Conclusion: Packaging with Confidence
BCT Test and FCT Test are pillars of corrugated box quality control. While FCT Test provides board material integrity, BCT Test provides finished box integrity to withstand stacking loads. Knowledge of differences and usage of the BCT Test vs FCT Test will help manufacturers maximize their designs, promote product safety, and gain customer confidence.
FAQs
Why might a box that has a good FCT sometimes also have a low BCT?
A highly constructed box with high FCT (hard board material) can be weak in BCT if the box structure is weak. Factors like fluting orientation, panel size, ventilation holes, quality of scoring, and adhesive application impact the overall stacking capacity (BCT) of a box to a great extent even if raw board (FCT) is hard.
Are there other tests besides BCT and FCT that are significant to corrugated boxes?
Indeed, there are some more important tests such as Edge Crush Test, Bursting Strength Test, Pin Adhesion Test, and Puncture Resistance Test. All of them test some significant characteristics to check the performance of corrugated boxes.
How do environmental conditions influence BCT and FCT results?
Humidity and temperature play a significant role in both FCT and BCT results. Excessive humidity can weaken the strength of corrugated board significantly. Because of that, tests typically occur in regulated surroundings (e.g., specific temperatures and humidity levels) to provide stable, comparable results.
What are most commonly utilized standards in BCT and FCT tests for industrial standards?
Some of the standards that are commonly utilized include ASTM D642 for BCT and ASTM D2806 for FCT in and ISO 12048 for BCT and ISO 3035 for FCT all over the world. Allowing testing with these standards enables consistent and equivalent data between the companies and the labs.
