In materials science and engineering, the most critical is that one understands how materials behave under stress. Having conceived a skyscraper, a car body, or even a paperclip, knowledge of the material limit is most important to safety, function, and economy. Tensile strength and yield strength are two intrinsic characteristics engineers always refer to. Although they are mentioned in tandem, they are two different points on a material's road to failure.
The Ultimate Test: Tensile Strength
It is also referred to as the "break point" of the material if it is being stretched. It's the highest stress a material can be subjected to before it begins to break or shatter if it is pulled or stretched. Think about a game of tug-of-war: tensile strength is the highest tension the rope will sustain before it breaks.
To find this, a Tensile strength Tester is utilized. This device mechanically pulls a standard sample of the material at a predetermined rate and measures the force applied and the resulting elongation. The force is plotted versus time continuously until the sample ruptures. The Tensile strength formula is simply:
Tensile Strength = Original Cross-sectional Area of the Sample Maximum Load
Point of No Return: Yield Strength
While tensile strength tells us when a material will fail, yield strength tells us when the material will permanently deform. It's the point at which a material will not come back to its original shape when stress is relieved. It's often more critical in engineering design than tensile strength since permanent deformation can cause functional failure short of failure.
Think of a bridge: the engineers build it in such a way that even if they are at maximum capacity, the tensile strength steel beams will not bend permanently. They might bend a little, but if the load is removed, they would spring back to their original shape. That's because the material operates according to its yield strength. When the stress on the bridge is greater than the yield strength of its steel, it gets permanently deformed, even if it doesn't collapse right away.
Yield strength determination also requires a Tensile strength Tester and a tensile strength test. As the material is strained, its stress-strain curve is created. For most materials, there is a definite "yield point" at which the material begins to deform plastically (permanently). For materials without a definite yield point, an "offset yield strength" is usually determined, usually at 0.2% plastic strain.
Tensile Strength vs Yield Strength: A Fundamental Difference
Difference between tensile strength vs yield strength is important to engineers.
-
Yield strength concerns functional failure by means of permanent deformation.
-
Tensile strength concerns catastrophic failure by means of fracture.
In most engineering uses, particularly those with structural integrity or accuracy, the design limit is established by the yield strength. Going beyond the yield strength indicates that the component has failed its design function, though it may not have actually broken. Understanding the specific tensile strength unit for different materials is crucial here.

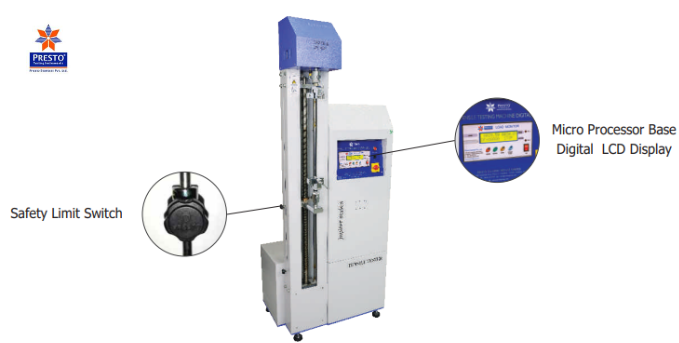

The Tensile Strength Tester Working Principle
The Tensile strength Tester working principle is based on subjecting a prepared material sample to a controlled, axial tensile force and recording its reaction. Essential components are:
-
Load Cell: It measures the force applied.
-
Grips: They grip the sample securely without slippage.
-
Extensometer: It measures the extension (strain) of the sample.
-
Crosshead: It travels at a pre-set velocity to apply the load.
-
Control System and Software: It controls the test, captures data, and plots the stress-strain curve.
The precise measurements provided by the Tensile strength Tester are essential for applying the correct tensile strength formula.
Conclusion: Designing for Durability and Safety
It is imperative to comprehend tensile strength and yield strength to design safe, dependable, and efficient products and structures. Whereas tensile strength is the ultimate point of rupture, yield strength tends to set the real limits of a material during service. With knowledge from a Tensile strength Tester and a good understanding of the Tensile strength formula, engineers can make rational material choices that guarantee components behave in the desired manner, avoiding not only catastrophic failures but also expensive permanent deformation. The tensile strength unit helps ensure consistency in these calculations. The continuous development of test and material methods, including the high-quality Tensile strength Tester principle, enables us to enter the border of design with safety and reliability, particularly for material handling like tensile strength steel.
FAQs
Q1: Why is yield strength usually more critical than tensile strength for engineering design?
A: Yield strength is generally more significant since it specifies the point where a material deforms permanently. In most engineering applications, permanent deformation constitutes a functional failure, even if the material doesn't fracture.
Q2: What does the "stress-strain curve" indicate regarding yield strength and tensile strength?
A: Stress-strain curve is a plot of the load behavior of a material. Yield strength is where the curve starts to diverge from its initial straight (elastic) phase, beginning of plastic deformation. Tensile strength is the maximum on the curve, maximum stress that the material can withstand before failing. The tensile strength unit will be displayed on this curve.
Q3: Is a material with increased tensile strength necessarily of higher yield strength?
A: Not always. Although in most cases, higher tensile strength materials will have higher yield strength, it is not a linear relationship. Material processing can affect these properties differently. For instance, there are grades of tensile strength steel whose yield strength properties differ though they may have the same ultimate tensile strengths.
Q4: What is the impact of temperature on tensile and yield strength?
A: Temperature has significant impact on both. In general, as temperature rises, tensile strength and yield strength tend to reduce. Materials become weaker and more ductile at elevated temperatures.
